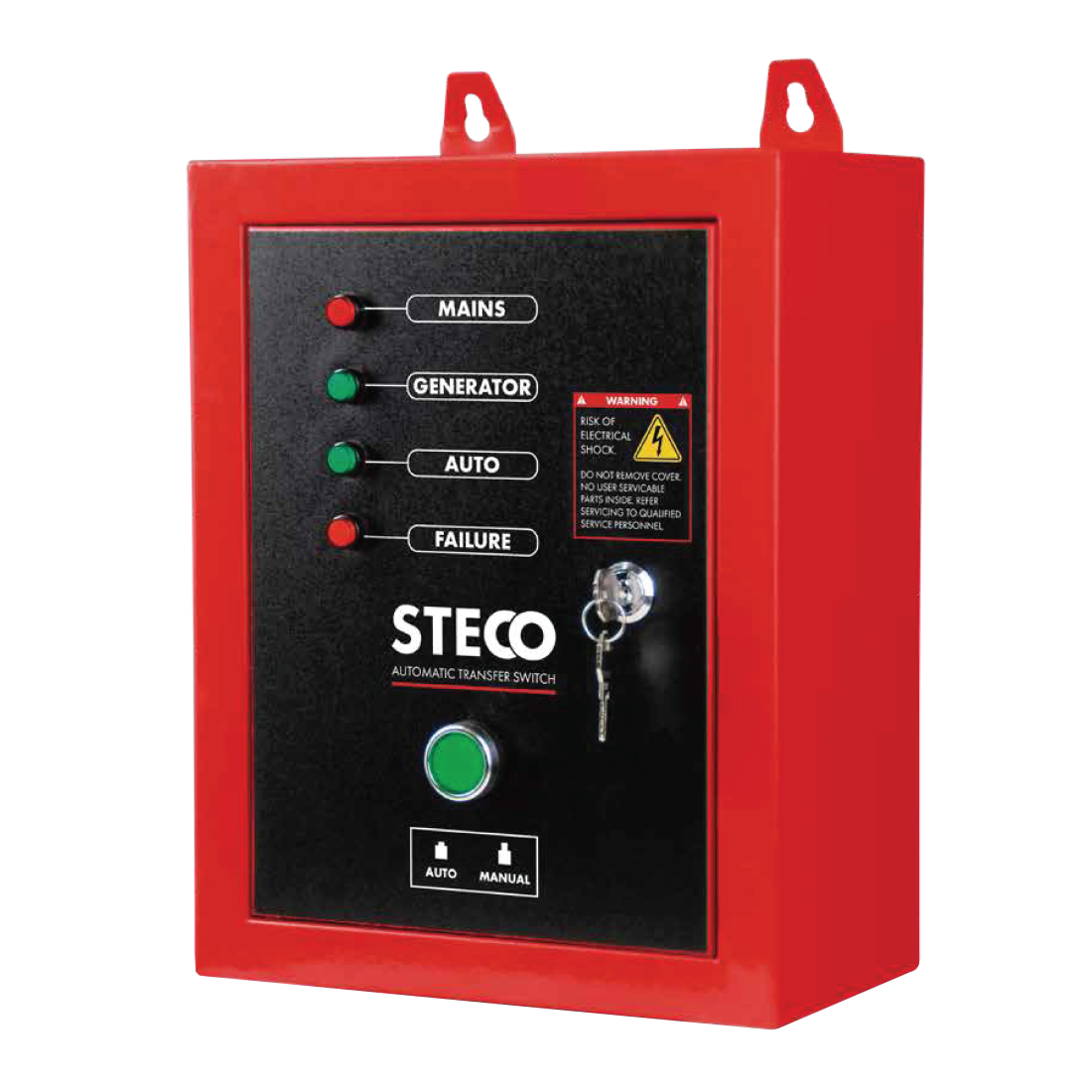

Sat – 15K Automatic Transfer Switch

FEATURES – Compatible with all ATS ready generator – Keeps the battery charged, fitted with overload protection – 8 pin control cable connectors – Automatic/Manual operationSPECIFICATIONSOperating Voltage: 8~18V DC(+20V Overvoltage Protection)Contactor Rated Current: Single Phase: 230V/50A(10kW Unit)Internal Charger: Input Voltage: 110~250V ACOutput Voltage: 13.8V DC (+/-2%)Charging Current: 1ACable Connection Wire: 8-Core Chrome/PetrolOperating Temperature: -25-60 degrees CStorage Condition: -15~55 degrees CInternal Wire Diameter: 6mm2 (Single-Phase 10kW Unit)
